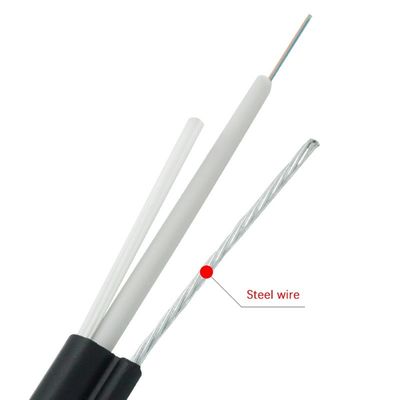

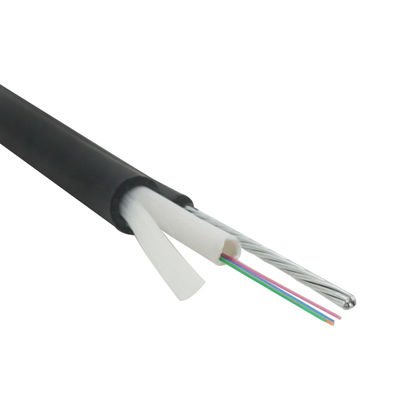

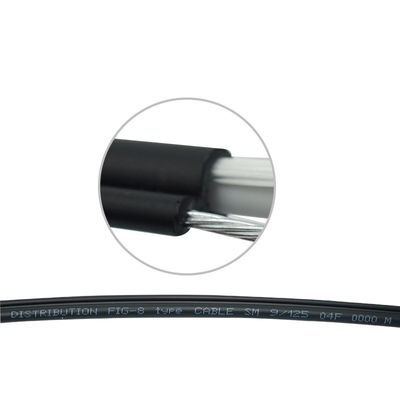

GJYXC8H openluchtfiguur 8 FRP-Sterkte G.652D LSZH 12 de Vezel Optische Kabel van de Kern Enige Wijze
|
Nr van kabel
|
|
|
12
|
||
|
Vezelmodel
|
|
|
G.652D
|
||
|
Losse Buis
|
Materiaal (kleur)
|
|
(Witte) LSZH
|
||
|
|
Diameter (±0.06) mm
|
|
2.6
|
||
|
|
Dikte (±0.03) mm
|
|
0,45
|
||
|
|
Max.Core nr. /Tube
|
|
12
|
||
|

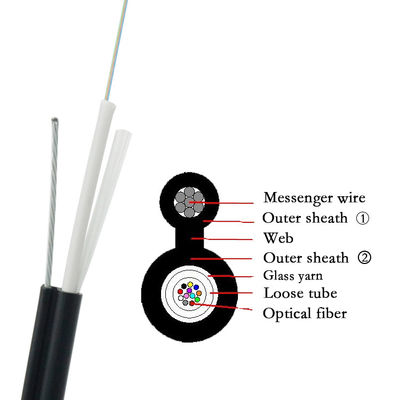

Buitenschede①
|
Materiaal
|
|
LSZH
|
||
|
|
Dikte (±0.1) mm
|
|
0,6
|
||
|
|
Diameter (±0.2) mm
|
|
2.4
|
||
|
Web
|
Materiaal
|
|
LSZH
|
||
|
|
Grootte (±0.1) mm
|
|
1.0*1.0
|
||
|
Boodschapper Wire
|
Materiaal
|
|
FRP
|
||
|
|
Grootte (±0.1) mm
|
|
1.2 (0.4mm*7)
|
||
|
Buitenschede②
|
Materiaal
|
|
LSZH
|
||
|
|
Dikte (±0.1) mm
|
|
1.0
|
||
|
|
Diameter (±0.2) mm
|
|
5.0
|
||
|
Kabeldiameter (±0.2) mm (W×H)
|
|
|
5.0*8.0
|
||
|
Kabelgewicht (±5) kg/km
|
|
|
37
|
||
|
Vermindering
|
|
1310 NM
|
£0.40
|
||
|
|
|
1550 NM
|
£0.30
|
||
|
Min. buigende straal
|
|
Zonder Spanning
|
10×Cable-φ
|
||
|
|
|
Onder Maximumspanning
|
15×Cable-φ
|
||
|
Temperatuurwaaier
(℃) |
|
Installatie
|
-10~+60
|
||
|
|
|
Transport&Storage
|
-20~+70
|
||
|
|
|
Verrichting
|
-20~+70
|
||
